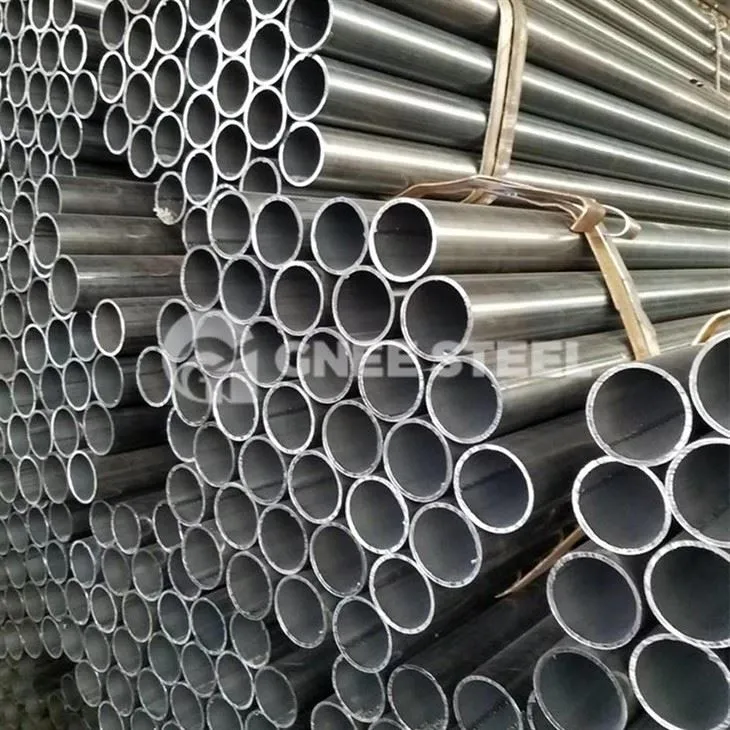

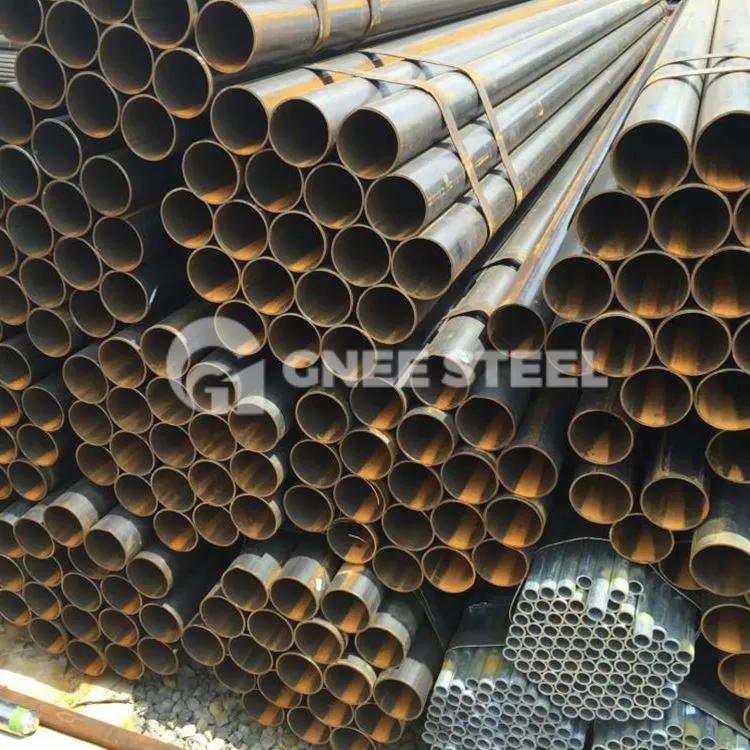

Tiwb Dur Carbon Wedi'i Weldio JIS G3452 SGP
Mae JIS G3452 yn un o safonau diwydiannol Japan ar gyfer pibellau dur carbon. Mae'n nodi gofynion sy'n ymwneud â phibellau a ddefnyddir ar gyfer cludo stêm, dŵr, olew, nwy, aer a hylifau eraill.
Anfon ymchwiliad
Sgwrs Nawr
Cyflwyniad Cynnyrch
Cyhoeddir y safon gan Bwyllgor Safonau Diwydiannol Japan. Defnyddir JIS G3452 yn bennaf ar gyfer cymwysiadau pwysedd isel megis cyfnewidwyr gwres planar, elfennau pibellau nad ydynt yn hanfodol, a thrafodaethau naratif o ddyluniad thermol a dadansoddiadau straen.
Manyleb Pibell Dur Wedi'i Weldio G3452
| Enw Cynnyrch: | Pibellau Dur Carbon Ar gyfer Pibellau Cyffredin | Deunydd: | Dur Carbon |
|---|---|---|---|
| Gradd: | SGP | Safon: | JIS G3452 |
| Amrediad Maint: | OD {{0}}mm*WT 0.5-50mm*12000mm Isod | Cais: | Ar gyfer Pibellau Cyffredin |
| Arwyneb: | Gorchudd Du Neu Sinc | Safon Perthnasol: | CA D 3507 ASTM A 53 API 5L DIN 2440 DIN2441 BS 1387 BS 3601 |
| Isafswm Nifer Archeb: | 5TONAU |
|---|---|
| Pris: | trafod |
| Manylion Pecynnu: | Wedi'i bacio mewn bwndeli neu flwch pren neu ar gais |
| Amser Cyflenwi: | 30-60diwrnod ar ôl derbyn eich taliad |
| Gallu Cyflenwi: | 5,000tunnell y flwyddyn |
JIS G3452 Dimensiynau, pwysau a goddefiannau dimensiwn tiwbiau a phibellau
| Dimensiynau JIS G3452, Pwysau a Goddefiannau Dimensiwn | |||||||
|---|---|---|---|---|---|---|---|
| Diamedr Enwol | O.D. | Goddefiadau OD | W.T. | Goddefiadau WT | Màs yr Uned Ac eithrio Soced kg/m | ||
| A | B | Mm | Pibellau i'w Torri mewn Thread Tapr | Pibellau Eraill | Mm | ||
| 6 | 1/8 | 10.5 | �% B1% 7B{0}}.5mm | �% B1% 7B{0}}.5mm | 2 | +Heb ei nodi -12.50% | 0.419 |
| 8 | 1/4 | 13.8 | �% B1% 7B{0}}.5mm | �% B1% 7B{0}}.5mm | 2.3 | 0.652 | |
| 10 | 3/8 | 17.3 | �% B1% 7B{0}}.5mm | �% B1% 7B{0}}.5mm | 2.3 | 0.851 | |
| 15 | 1/2 | 21.7 | �% B1% 7B{0}}.5mm | �% B1% 7B{0}}.5mm | 2.8 | 1.31 | |
| 20 | 3/4 | 27.2 | �% B1% 7B{0}}.5mm | �% B1% 7B{0}}.5mm | 2.8 | 1.68 | |
| 25 | 1 | 34 | �% B1% 7B{0}}.5mm | �% B1% 7B{0}}.5mm | 3.2 | 2.43 | |
| 32 | 1 1/4 | 42.7 | �% B1% 7B{0}}.5mm | ±0.5mm | 3.5 | 3.38 | |
| 40 | 1 1/2 | 48.6 | �% B1% 7B{0}}.5mm | �% B1% 7B{0}}.5mm | 3.5 | 3.89 | |
| 50 | 2 | 60.5 | �% B1% 7B{0}}.5mm | ±1% | 3.8 | 5.31 | |
| 65 | 2 1/2 | 76.3 | �% B1% 7B{0}}.7mm | ±1% | 4.2 | 7.47 | |
| 80 | 3 | 89.1 | �% B1% 7B{0}}.8mm | ±1% | 4.2 | 8.79 | |
| 90 | 3 1/2 | 101.6 | �% B1% 7B{0}}.8mm | ±1% | 4.2 | 10.1 | |
| 100 | 4 | 114.3 | �% B1% 7B{0}}.8mm | ±1% | 4.5 | 12.2 | |
| 125 | 5 | 139.8 | �% B1% 7B{0}}.8mm | ±1% | 4.5 | 15 | |
| 150 | 6 | 165.2 | ±0.8mm | �% B11.6mm | 5 | 19.8 | |
| 175 | 7 | 190.7 | �% B1% 7B{0}}.9mm | ±1.6mm | 5.3 | 24.2 | |
| 200 | 8 | 216.3 | �% B11.0}mm | ±0.8% | 5.8 | 30.1 | |
| 225 | 9 | 241.8 | �% B11.2mm | ±0.8% | 6.2 | 36 | |
| 250 | 10 | 267.4 | �% B11.3mm | ±0.8% | 6.6 | 42.4 | |
| 300 | 12 | 318.5 | �% B11.5mm | ±0.8% | 6.9 | 53 | |
| 350 | 14 | 355.6 | – | ±0.8% | 7.9 | 67.7 | |
| 400 | 16 | 406.4 | – | ±0.8% | 7.9 | 77.6 | |
| 450 | 18 | 457.2 | – | ±0.8% | 7.9 | 87.5 | |
| 500 | 20 | 508 | – | ±0.8% | 7.9 | 97.4 | |
Pibell Dur Carbon JIS G3452
